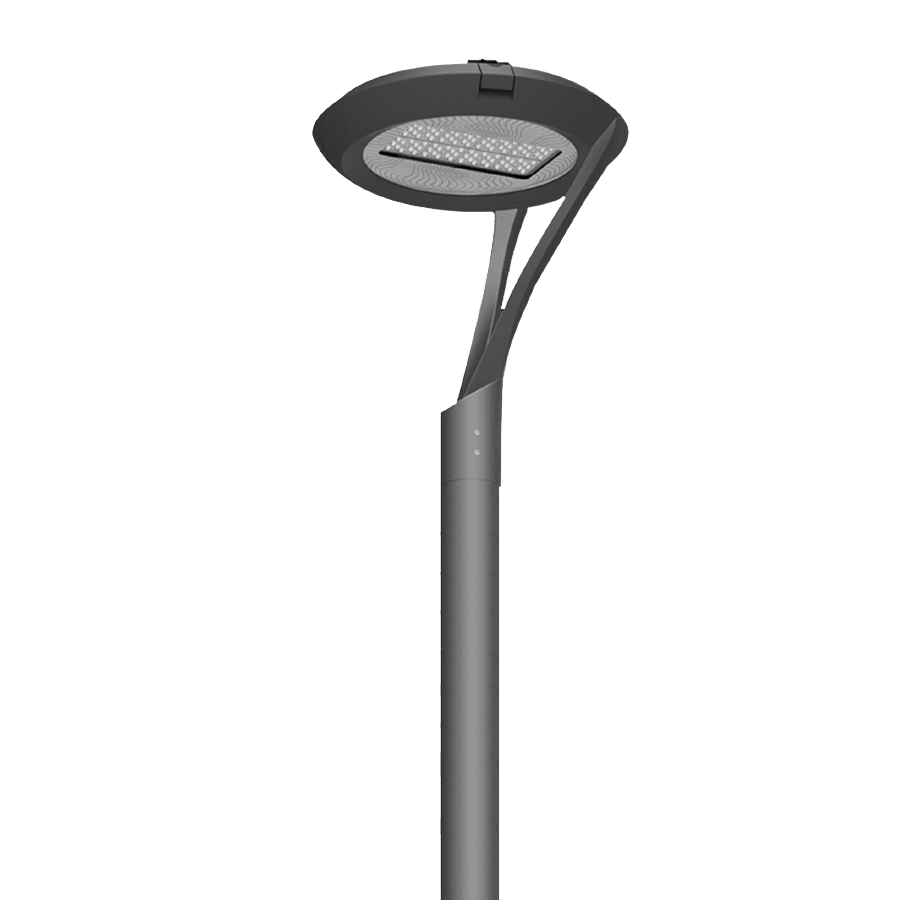

SEVILLE

Presenting a new paradigm that takes urban street lighting mainstream to a new benchmark in visual comfort.
It's a groundbreaking creation that delivers unparalleled design freedom, maximum energy efficiency and unrivaled optical and brightness control.
In addition to the striking form of seamless construction.
High performance optics controls, scalability and mounting options to cover more applications and enhance the environment they occupy.
  • IP66
  • IK10
  • Meets CE safety standards, Rohs compliant
  • RoHS
SEVILLESEVILLE
Datasheet
Drawing
Photometric
General Specifications
Application
Cycles Paths, Park Lighting, Parking, Squares, Suburban Streets, Urban Roads
Product Type
Landscape Lighting
Technical Data
Mounting
Flush Mounted, Post-top Mount
Material
Die-cast aluminum
Body Color
Dark Bronze, Grey
Housing
IP66 Rated housing is cast from corrosion resistant aluminum, maintaining strength and precision to sustain long term dayform appearance. Aluminum alloy die-casting is designed as one-piece with internal cooling fins. Stable mechanical system prevents damage from installation generated vibration.
Optics
Specifically designed for pedestrian applications. Optical PMMA LGP plus high-degree diffusion outdoor PC lens produces symmetrical 80° beam light distribution. The LGP is manufactured from precision injection molded PMMA resulting in a pixelation free optical image for improved glare control and visual comfort.
Diffuser
PMMA
IP Protection
IP66
Ambient temperature
Ta= max 50°C
Storage temperature
 -40°C to 50°C
Screws
Stainless Steel
Dimensions
Diameter (mm)
Φ400
Height (mm)
524
Optical Data
Wattage
24W, 35W, 58W, 80W
Efficiency
120-125lm/W
Light Distribution
Type II, Type III, Type V
Color Changing (RGB-RGBW-RGBA)
SDCM<3
Color Rendering Index
Ra> 70
Color Temperature (CCT)
Cool White, Neutral White, Warm White
Power factor
≥0.92
Average Lamp Life
>50.000hrs
Electrical Data
Input Voltage/Frequency
100-277V, 50/60Hz, 347-480V, 50/60Hz
Driver/Transformer
Included
Driver Mounting
Integrated
Control
Dimmable 1-10V, Dimmable 0-10V, DALI
Total harmonic distortion
<10%

Ordering Code

CodeWattageDelivered Output (lm)CCT (K)Efficiency
RAY-EW-URB-PT-25-G1F24W2760/2880/2760CW,NW,WW120-125lm/W
RAY-EW-URB-PT-35-G1F35W4375/4200/4025CW,NW,WW120-125lm/W
RAY-EW-URB-PT-58-G1F58W7250/6960/6670CW,NW,WW120-125lm/W
RAY-EW-URB-PT-80-G1F80W10000/9600/9200CW,NW,WW120-125lm/W

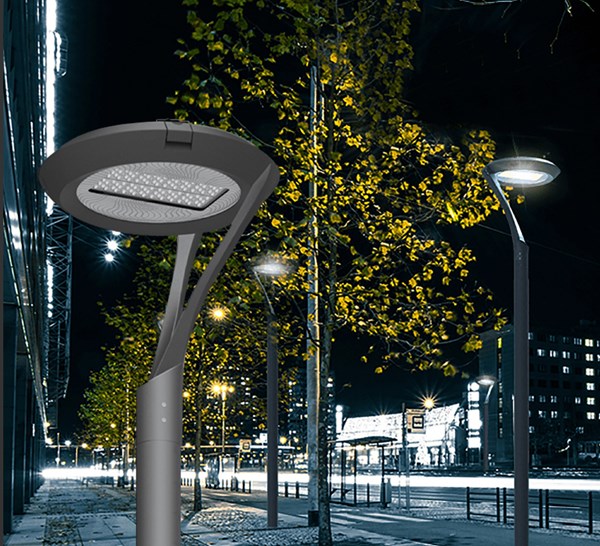

Ambient image

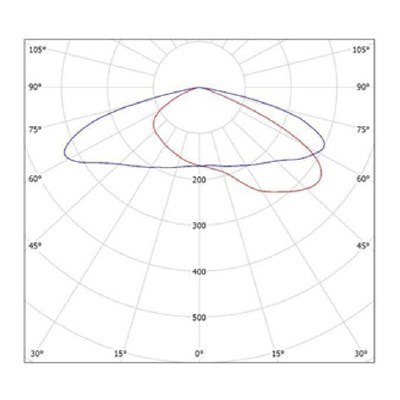

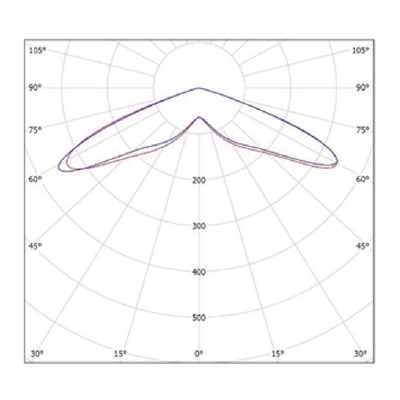

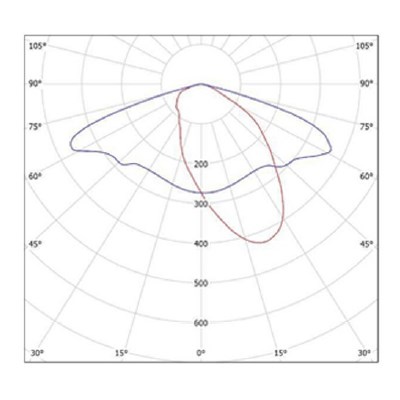

Photometric
