SALINA

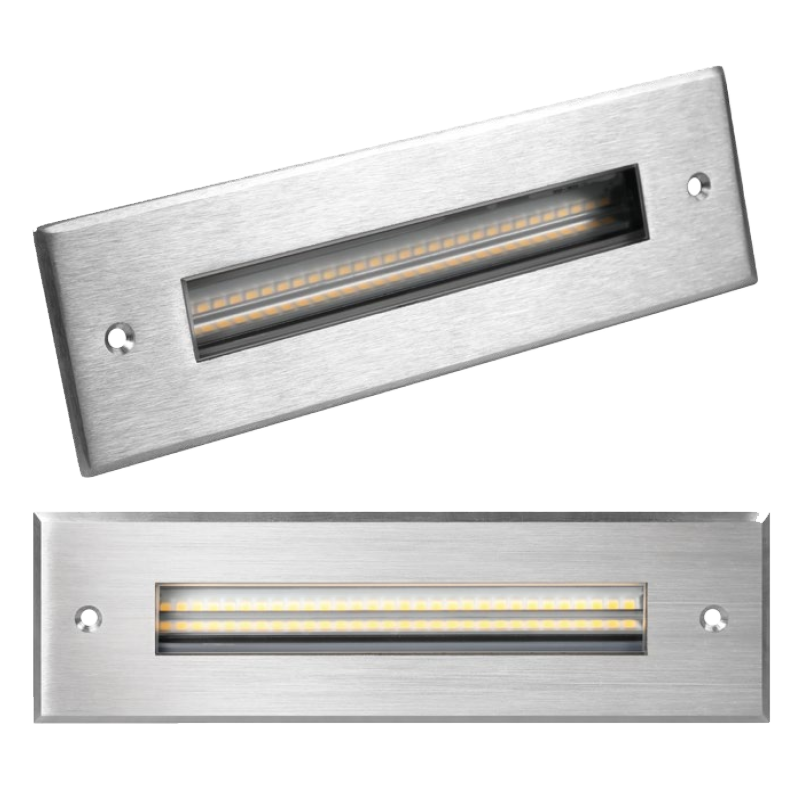

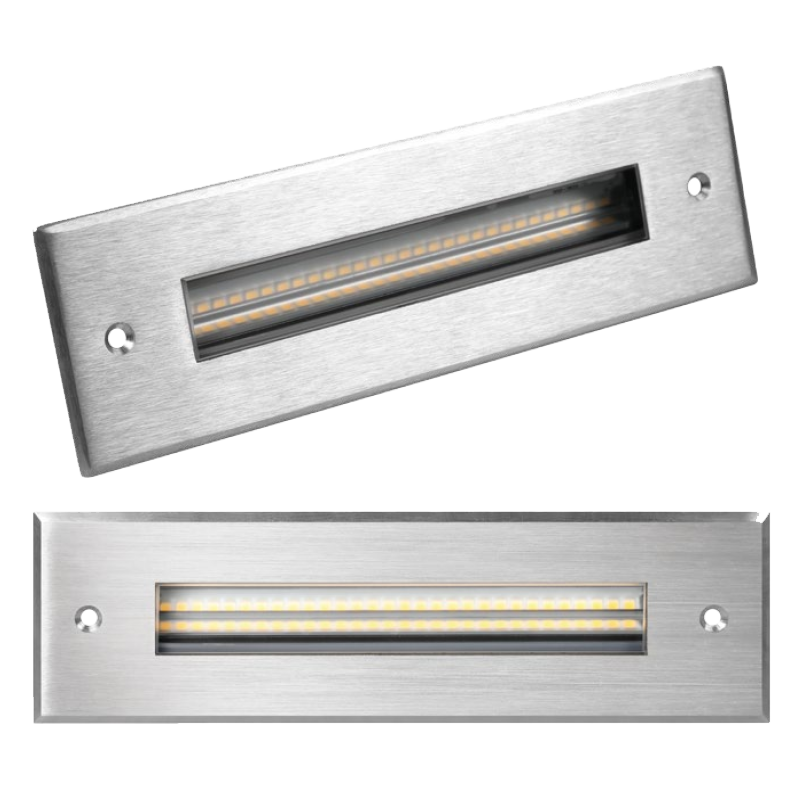

SALINA is an outdoor recessed wall fixture for step lighting application.
  • IP67
  • Meets CE safety standards, Rohs compliant
  • CB
  • IECEE
SALINASALINA
General Specifications
Application
Outdoor, Indoor
Product Type
Wall Mounted

Technical Data
Mounting
Recessed Wall Mounted
Material
Aluminum body, 316 stainless steel trim
Body Color
Stainless steel
Diffuser
Clear tempered glass
IP Protection
IP67
Ambient temperature
Ta -20°C - Ta +50°C

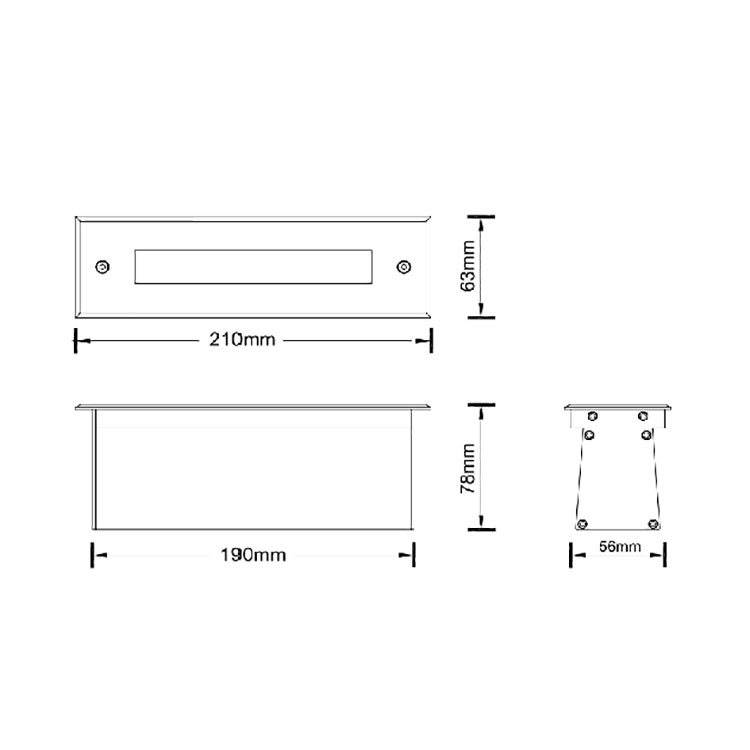

Dimensions
Cut-out (mm)
190*56*78
Length (mm)
210
Width (mm)
63

Optical Data
Light Source
LED
Wattage
7W
Delivered Output (lm)
350
Light Distribution
Asymmetric
Color Rendering Index
Ra> 80
Color Temperature (CCT)
3000K, 4000K
Average Lamp Life
>50.000hrs

Electrical Data
Input Voltage/Frequency
220-240V, 50/60Hz
Driver/Transformer
Included
Driver Mounting
Integrated

Ordering Code

CodeDimensions (mm)Cut-out size (mm)WattageDelivered Output (lm)CCT (K)
RAY -SALINA-RWL-IP65-7W210*63190*56*787W3503000,4000

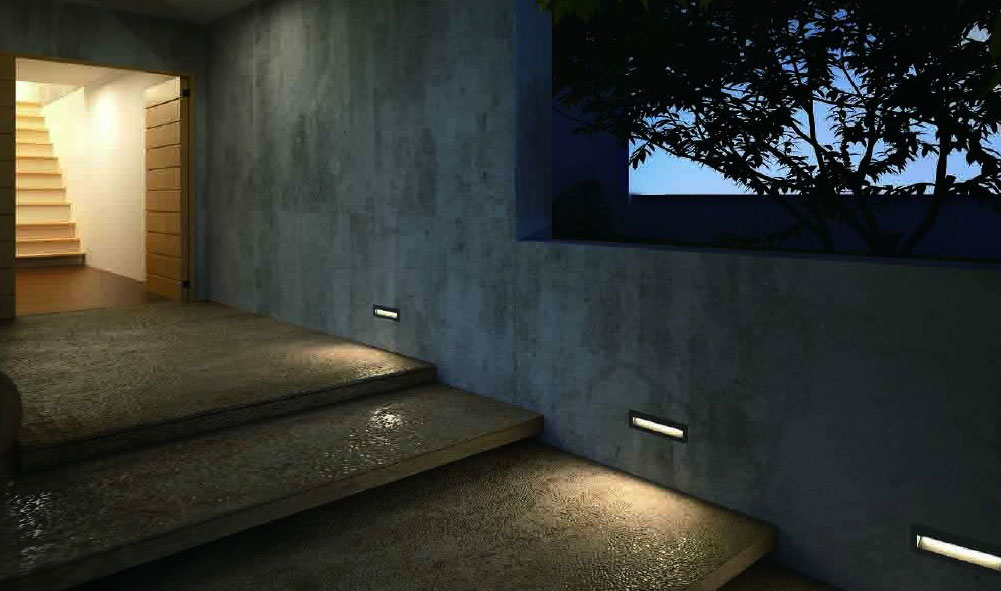

Ambient image
