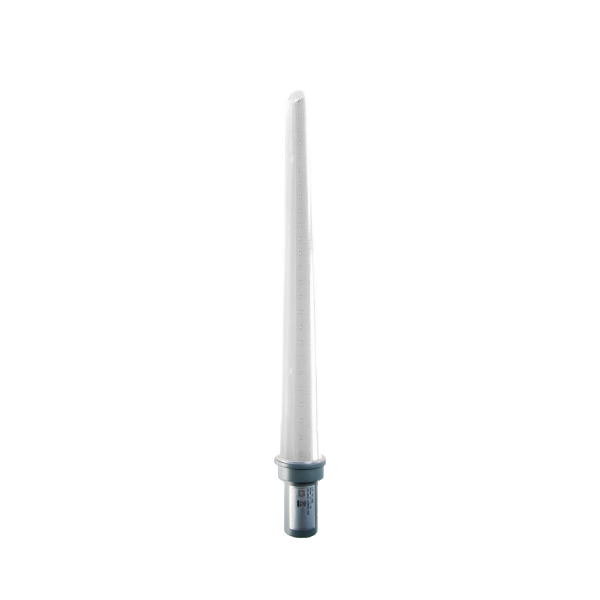

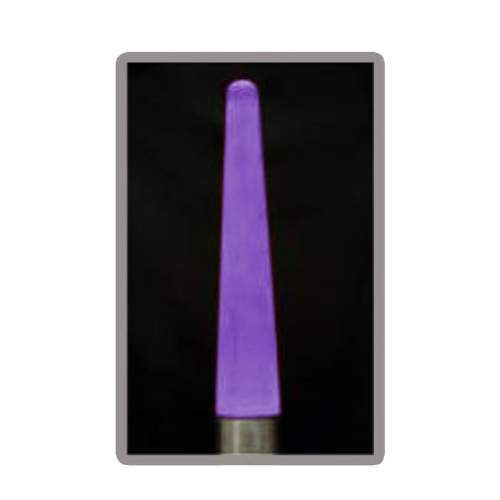

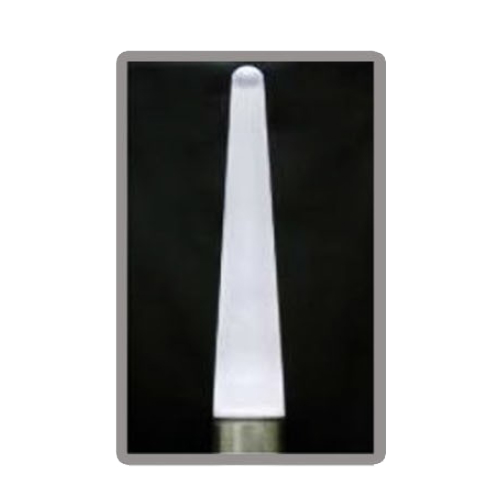

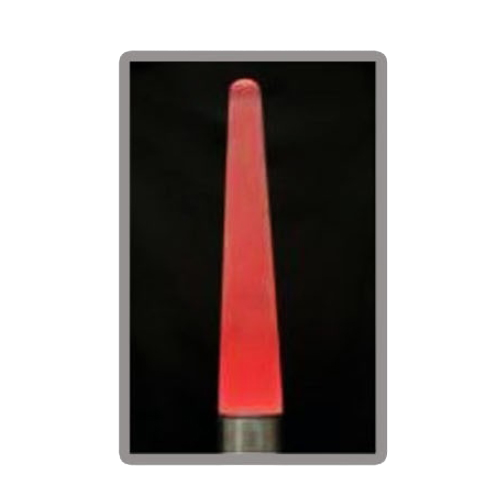

LED SPIKE

The light shade is made of PC and the lamp base is made of high strength die casting aluminum.
Lamp protection grade is IP54 (IP65 on request) and electric shock protection class is I/II.
LED SPIKE is designed outdoor use and normally to be installed in the top of the street light column. It is designed to be used in the gulf environment & resist the high temperature.
  • IP54
  • IK08
  • Class I
  • Class II
  • Meets CE safety standards, Rohs compliant
LED SPIKELED SPIKELED SPIKELED SPIKELED SPIKELED SPIKELED SPIKELED SPIKE
Datasheet

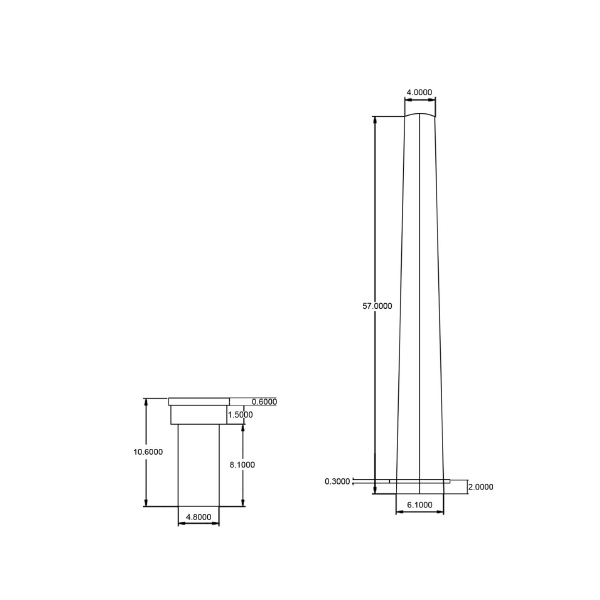

Drawing
General Specifications
Application
High Traffic Urban, Motorways, Roadways
Product Type
Landscape Lighting, Street Light
Technical Data
Mounting
Post-top Mount
Material
Die-cast aluminum
Diffuser
PC Diffuser
IP Protection
IP54
Ambient temperature
Ta -25°C - Ta +65°C
Storage temperature
  -40°C to 80°C
Dimensions
Diameter (mm)
61
Height (mm)
570
Optical Data
Light Source
SMD EPISTAR
Wattage
12
Delivered Output (lm)
1000
Light Distribution
360°
Color Temperature (CCT)
Green, Purple, Red, Warm White, White
Power factor
>0.95
Average Lamp Life
>50.000hrs
Electrical Data
Input Voltage/Frequency
200-240V, 50/60Hz
Electrical Class
Class I, Class II

Ordering Code

CodeWattageCCT (K)EfficiencyInput Voltage
RAY-SP-RD12WRed95lm/W85-264V

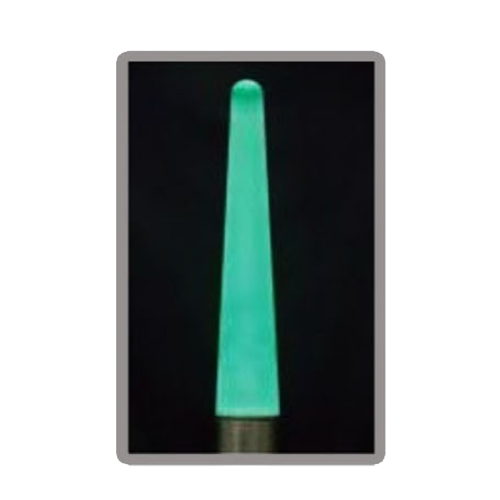

RAY-SP-GR12WGreen95lm/W85-264V

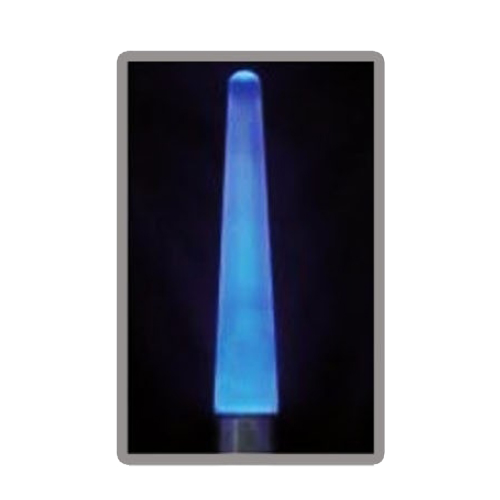

RAY-SP-BL12WBlue95lm/W85-264V
RAY-SP-W12WWhite95lm/W85-264V

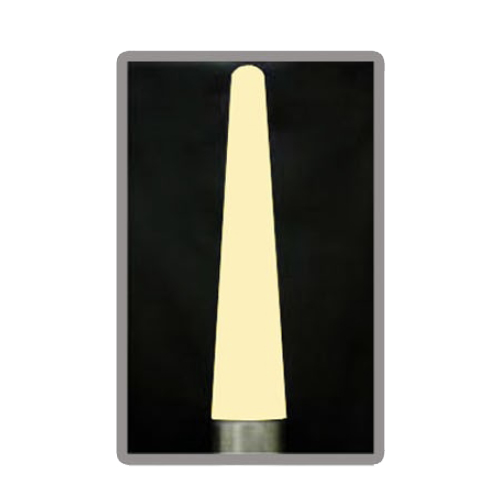

RAY-SP-WW12WWW95lm/W85-264V
RAY-SP-PU12WPurple95lm/W85-264V

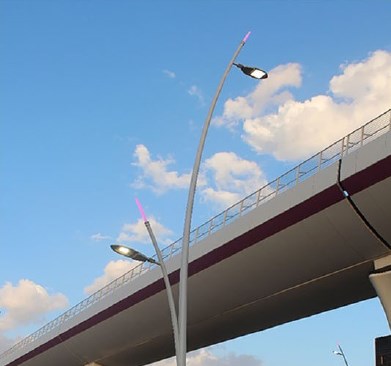

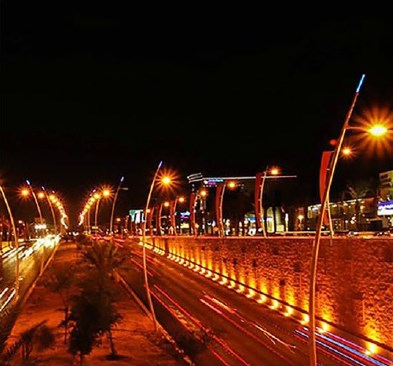

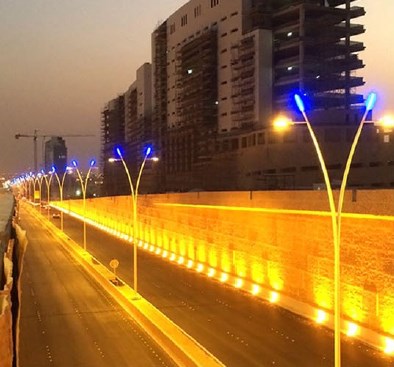

Ambient image
